LALIZAS Lifebuoy Ring SOLAS, with Retroreflective Tape
- Specially designed for commercial use.
- Ideal for cargo & passenger vessels.
- Available codes with SOLAS/MED and USCG SOLAS approvals.
- It features a hard, cross-linked polyethylene outer shell that does not deteriorate and is unaffected by extreme weather conditions.
- The grab line which surrounds the LALIZAS Lifebuoy Ring is designed to withstand oil and flames and provides easy & quick grab in case of emergency. Made of polyethylene.
- It is equipped with 400 sq.cm of SOLAS Retroreflective Tape (70180) that provides enhanced visibility in low light conditions.
- The highly visible colour of LALIZAS Lifebuoy Ring makes it easily detectable in water, through waves and fog.
- For maximum effectiveness, combine the Lifebuoy Ring with the Floating Line (70260) and the LALIZAS Lifebuoy Lights (70030/71325-6/196482).
*Impa Code
330151,330156,330157, 330158,330152, 330153,330154, 330155

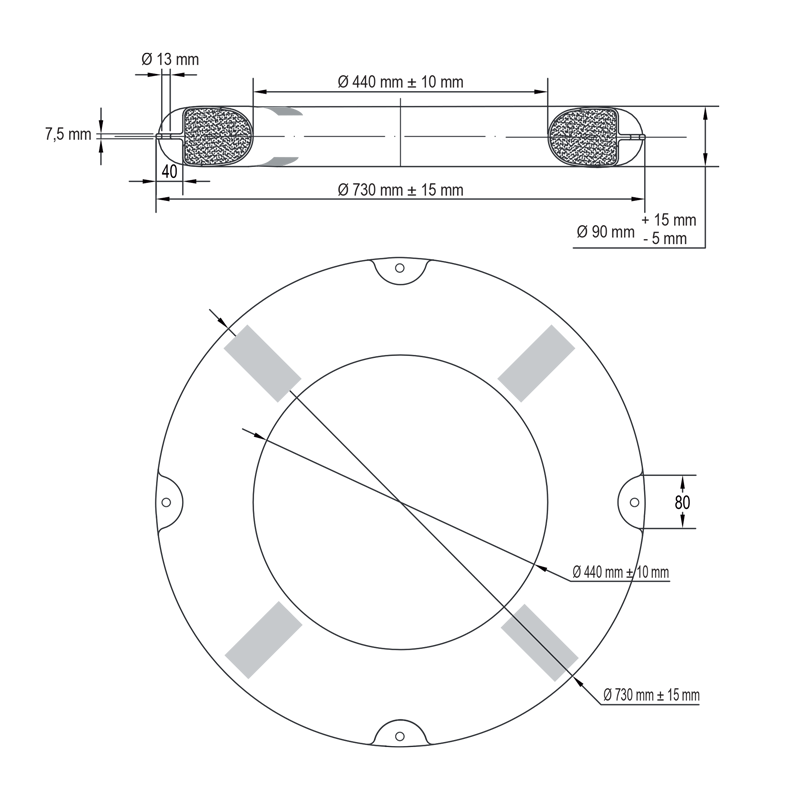

| Image | Code | Weight (kg) | Drop Height (m) | Buoyancy (Nt) | Height | Ext. Diameter | Int. Diameter | Lifebuoy shell / Internal material | Grab line diameter (mm) | Grab line material | Highly visible colour | Storage temperature | Resistant to flame & to diesel oil | Tested for operation with light & smoke signal | Approval |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70090 | 2.5 kg | 80 | ≥ 145 Nt | 105 mm ± 10 mm | 720 mm ± 10 mm | 440 mm ± 10 mm | HDPE / PU Foam | 9,5 | PE | YES | -30oC up to + 65oC | YES | - | SOLAS/MED |
|
|
700901 | 2.5 kg (5,51lb) | 80 | ≥ 145 Nt | 105 mm ± 10 mm | 720 mm ± 10 mm | 440 mm ± 10 mm | HDPE / PU Foam | 11 | PE | YES | -30oC up to + 65oC | YES | - | USCG SOLAS |
|
|
70110 | 4 kg | 80 | ≥ 145 Nt | 105 mm ± 10 mm | 720 mm ± 10 mm | 440 mm ± 10 mm | HDPE / PU Foam | 9,5 | PE | YES | -30o C up to + 65o C | YES | YES | SOLAS/MED |
|
|
701101 | 4 kg (8,81lb) | 80 | ≥ 145 Nt | 105 mm ± 10 mm | 720 mm ± 10 mm | 440 mm ± 10 mm | HDPE / PU Foam | 11 | PE | YES | -30oC up to + 65oC | YES | YES | USCG SOLAS |
