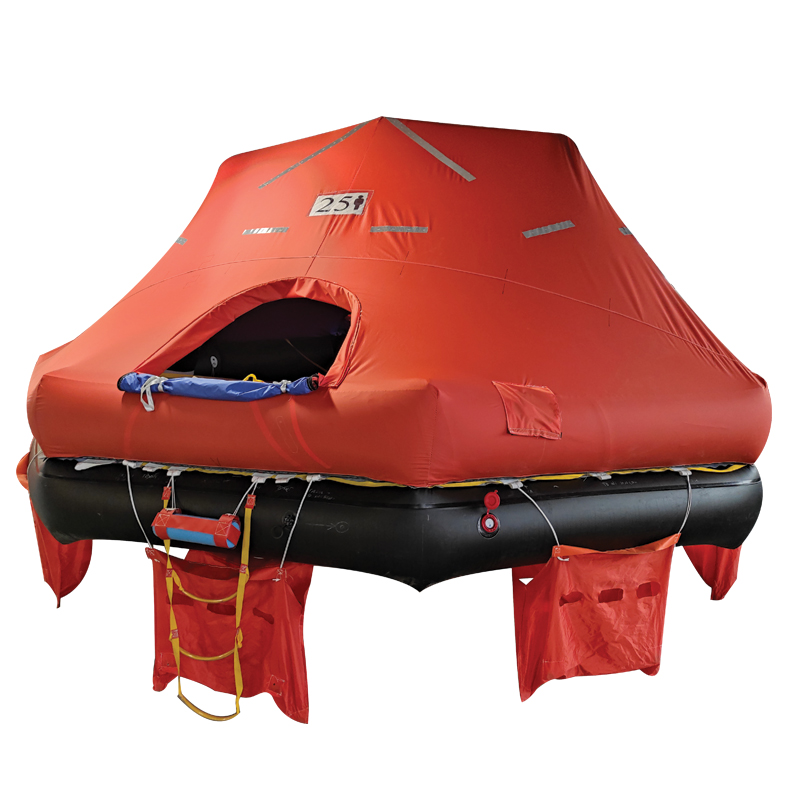

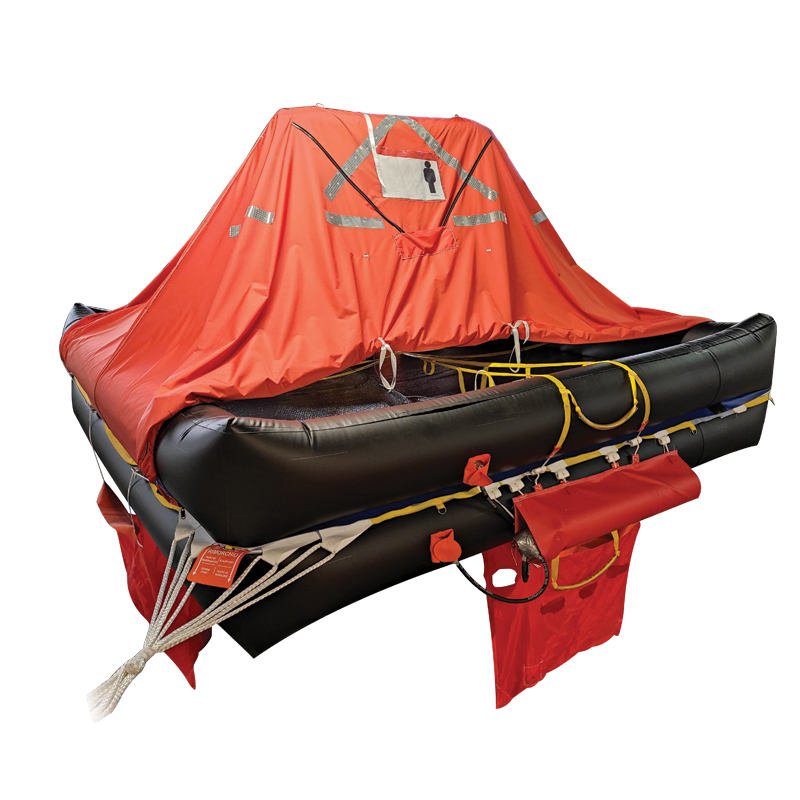

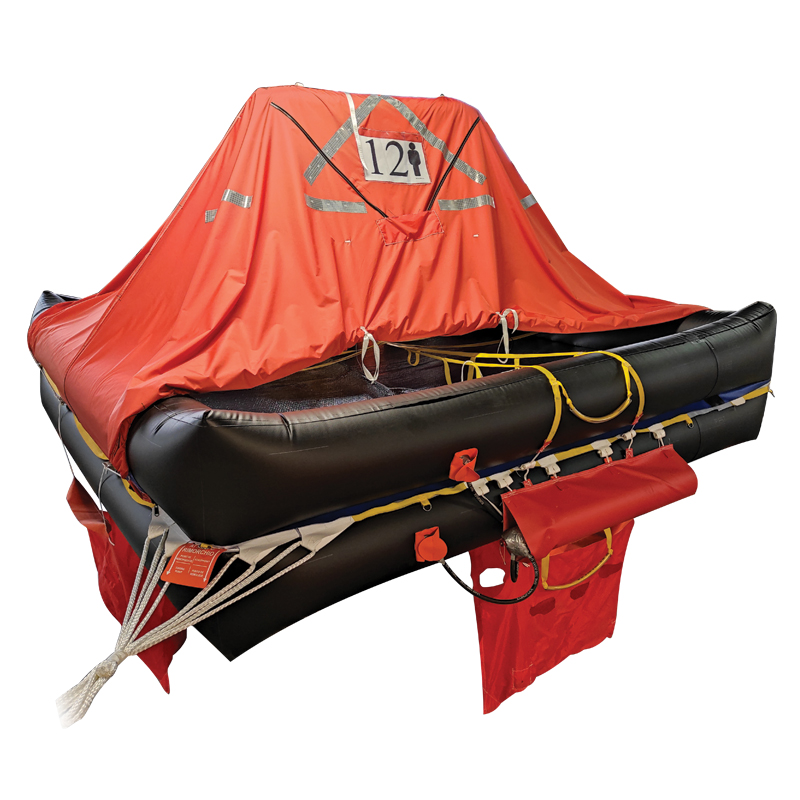

LALIZAS Liferaft SOLAS DEEP SEA II, Throw Overboard
LALIZAS Liferaft SOLAS DEEP SEA II, Throw-overboard complies with MED 2014/90/EU – Chapter III SOLAS 1974 and subsequent amendments.
Available in Pack A and Pack B equipment from 6 to 25 person versions. Can be packed either in a roll or in a flat pack canister.
The compact version is the most compact SOLAS liferaft, designed specifically for the mega yacht market in order to save valuable stowage space.
A compact container is available in both cylindrical and rectangular shape with Pack A and Pack B equipment from 6 to 12 person versions. The number of stabilizing pockets guarantees safety and comfort
even in a stormy sea.
A fiberglass container is included either in a roll or in a flat pack canister version. LALIZAS Liferaft SOLAS DEEP SEA II, Throw-overboard is designed to inflate in an environment
temperature of -30°C to +65°C while its inspection interval is every year.

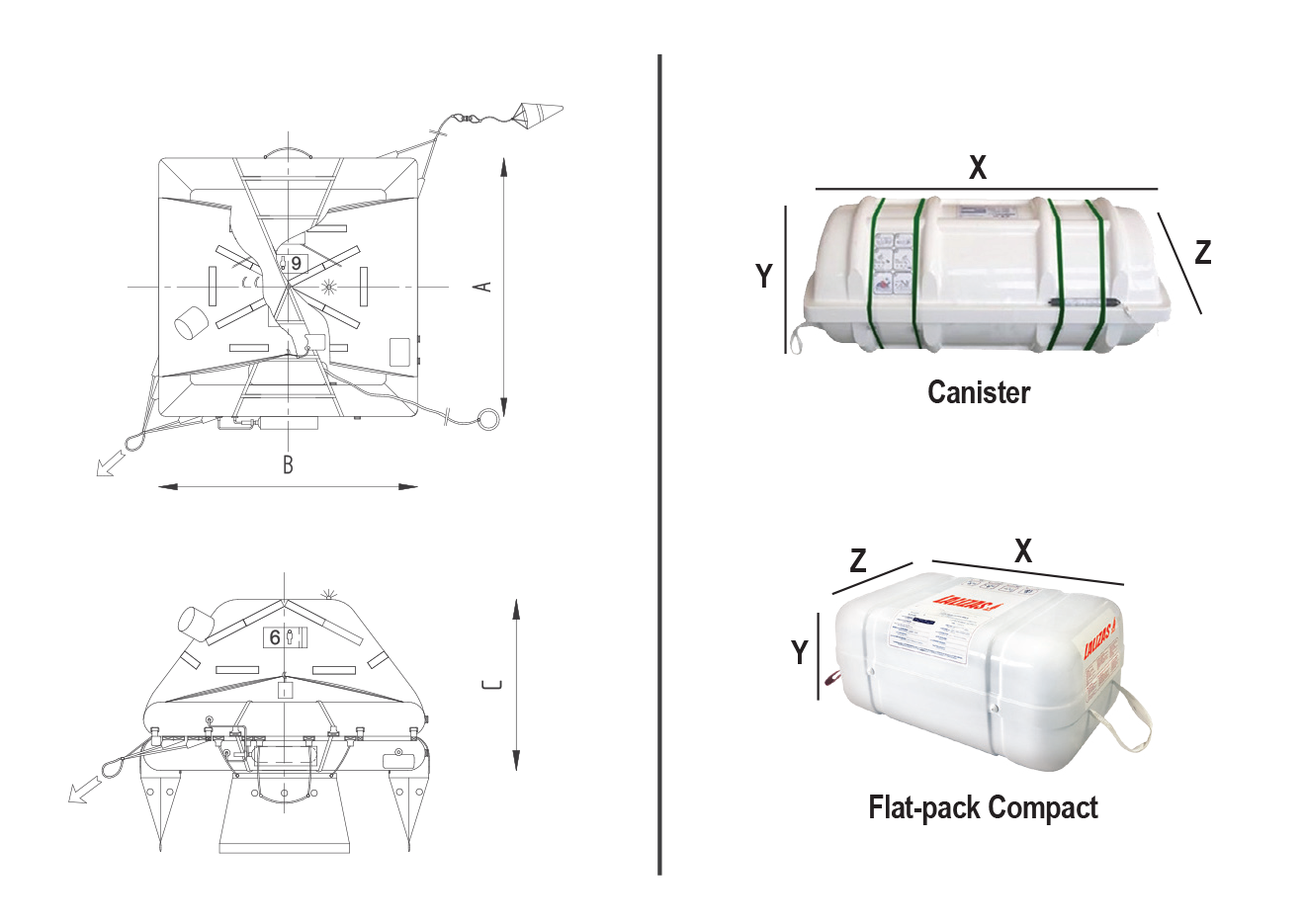

| Image | Code | Weight (kg) | Max Persons | Dimensions A (mm) | Dimensions B (mm) | Dimensions C (mm) | Container | Canister Material | Maximum Storage Height ft (m) | Χ - Length inches (mm) | Ζ - Width inches (mm) | Υ - Height inches (mm) | Pack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
501595 | 185 lb (84 kg) | 6 | 78,5 (1990) | 78,5 (1990) | 47,5 (1210) | Canister | GRP | 82 (25) | 46,5 (1180) | 25,5 (640) | 23,5 (590) | A |
|
|
501596 | 216 lb (98 kg) | 8 | 89,5 (2270) | 89,5 (2270) | 51,5 (1300) | Canister | GRP | 82 (25) | 46,5 (1180) | 25,5 (640) | 23,5 (590) | A |
|
|
501597 | 234 lb (106 kg) | 10 | 100,5 (2550) | 100,5 (2550) | 55,5 (1410) | Canister | GRP | 82 (25) | 52 (1320) | 25,5 (640) | 23,5 (590) | A |
|
|
501598 | 260 lb (118 kg) | 12 | 106 (2690) | 106 (2690) | 59 (1490) | Canister | GRP | 82ft (25 m) | 52 (1320) | 25,5 (640) | 23,5 (590) | A |
|
501599 | 338 lb (153 kg) | 16 | 133 (3380) | 133 (3380) | 64 (1620) | Canister | GRP | 82 (25) | 57,5 (1460) | 28 (710) | 24 (610) | A |
|
|
501600 | 372 lb (169 kg) | 20 | 133 (3380) | 133 (3380) | 64 (1620) | Canister | GRP | 82 (25) | 62,5 (1590) | 29 (730) | 25,5 (640) | A |
|
|
501601 | 392 lb (178 kg) | 25 | 133 (3380) | 133 (3380) | 64 (1620) | Canister | GRP | 82 (25) | 62,5 (1590) | 29 (730) | 25,5 (640) | A |
|
|
501602 | 156 lb (71 kg) | 6 | 78,5 (1990) | 78,5 (1990) | 47,5 (1210) | Canister | GRP | 82 (25) | 46,5 (1180) | 25,5 (640) | 23,5 (590) | B |
|
|
501603 | 168 lb (76 kg) | 8 | 89,5 (2270) | 89,5 (2270) | 51,5 (1300) | Canister | GRP | 82 (25) | 46,5 (1180) | 25,5 (640) | 23,5 (590) | B |
|
|
501604 | 179 lb (81 kg) | 10 | 100,5 (2550) | 100,5 (2550) | 55,5 (1410) | Canister | GRP | 82 (25) | 46,5 (1180) | 25,5 (640) | 23,5 (590) | B |
|
|
501605 | 203 lb (92 kg) | 12 | 106 (2690) | 106 (2690) | 59 (1490) | Canister | GRP | 82 (25) | 52 (1320) | 25,5 (640) | 23,5 (590) | B |
|
|
501606 | 240 lb (109 kg) | 16 | 133 (3380) | 133 (3380 | 64 (1620) | Canister | GRP | 82 (25) | 52 (1320) | 25,5 (640) | 23,5 (590) | B |
|
|
501607 | 260 lb (118 kg) | 20 | 133 (3380) | 133 (3380) | 64 (1620) | Canister | GRP | 82 (25) | 57,5 (1460) | 28 (710) | 24 (610) | B |
|
|
501608 | 276 lb (125 kg) | 25 | 133 (3380) | 133 (3380) | 64 (1620) | Canister | GRP | 82 (25) | 57,5 (1460) | 29 (730) | 25,5 (640) | B |
|
|
501609 | 141 lb (64 kg) | 6 | 78,5 (1990) | 78,5 (1990) | 47,5 (1210) | Flat-pack Compact | ABS | 59 (18) | 29,5 (740) | 19 (480) | 15,5 (390) | A |
|
|
501610 | 170 lb (77 kg) | 8 | 89,5 (2270) | 89,5 (2270) | 51,5 (1300) | Flat-pack Compact | ABS | 59 (18) | 34 (860) | 24,5 (620) | 14 (350) | A |
|
|
501611 | 198 (90) | 10 | 100,5 (2550) | 100,5 (2550) | 55,5 (1410) | Flat-pack Compact | ABS | 59 (18) | 34 (860) | 24,5 (620) | 14 (350) | A |
|
|
501612 | 238 lb (108 kg) | 12 | 106 (2690) | 106 (2690) | 59 (1490) | Flat-pack Compact | GRP | 59 (18) | 41,5 (1050) | 22,5 (570) | 14 (350) | A |
|
|
501613 | 115 lb (52 kg) | 6 | 78,5 (1990) | 78,5 (1990) | 47,5 (1210) | Flat-pack Compact | ABS | 59 (18) | 29,5 (740) | 19 (480) | 15,5 (390) | B |
|
|
501614 | 130 lb (59 kg) | 8 | 89,5 (2270) | 89,5 (2270) | 51,5 (1300) | Flat-pack Compact | ABS | 59 (18) | 34 (860) | 24,5 (620) | 14 (350) | B |
|
|
501615 | 141 lb (64 kg) | 10 | 100,5 (2550) | 100,5 (2550) | 55,5 (1410) | Flat-pack Compact | ABS | 59 (18) | 34 (860) | 24,5 (620) | 14 (350) | B |
|
|
501616 | 175 lb (79 kg) | 12 | 106 (2690) | 106 (2690) | 59 (1490) | Flat-pack Compact | ABS | 59 (18) | 34 (860) | 24,5 (620) | 14 (350) | B |
|
|
501617 | 160 lb (73 kg) | 6 | 78,34 (1990) | 78,34 (1990) | 47,63 (1210) | Canister Compact | GRP | 59 (18) | 46,45 (1180) | 22,04 (560) | 20,86 (530) | A |
|
|
501618 | 211,6 lb (96 kg) | 8 | 89,97 (2270) | 89,97 (2270) | 51,18 (1300) | Canister Compact | GRP | 45,75 (18) | 33,85 (860) | 24,40 (620) | 17,7 (450) | A |
|
|
501619 | 231,5 lb (105 kg) | 10 | 100,39 (2550) | 100,39 (2550) | 55,51 (1410) | Canister Compact | GRP | 59 (18) | 46,45 (1180) | 22,04 (560) | 20,86 (530) | A |
|
|
501620 | 235,9 lb (107 kg) | 12 | 105,90 (2690) | 105,90 (2690) | 58,66 (1490) | Canister Compact | GRP | 59 (18) | 46,5 (1180) | 22,04 (560) | 20,86 (530) | A |
|
|
501621 | 127,9 lb (58 kg) | 6 | 78,34 (1990) | 78,34 (1990) | 47,63 (1210) | Canister Compact | ABS | 59 (18) | 33,46 (850) | 24,05 (610) | 13,77 (530) | B |
|
|
501622 | 154,3 lb (70 kg) | 8 | 89,97 (2270) | 89,97 (2270) | 51,18 (1300) | Canister Compact | ABS | 59 (18) | 46,45 (1180) | 22,04 (560) | 20,86 (530) | B |
|
|
501623 | 147,7 lb (67 kg) | 10 | 100,39 (2550) | 100,39 (2550) | 55,51 (1410) | Canister Compact | ABS | 59 (18) | 46,5 (1180) | 22,04 (560) | 20,86 (530) | B |
|
|
501624 | 169,8 lb (77 kg) | 12 | 105,90 (2690) | 105,90 (2690) | 58,66 (1490) | Canister Compact | GRP | 59 (18) | 46,5 (1180) | 22,04 (560) | 20,86 (530) | B |
|
|
501625 | 185,2 lb (84 kg) | 6 | 78,34 (1990) | 78,34 (1990) | 47,63 (1210) | Flat-pack Compact | GRP | 59 (18) | 33,46 (850) | 24,05 (610) | 13,77 (530) | A |
|
|
501626 | 211,6 lb (96 kg) | 8 | 89,5 (2270) | 89,5 (2270) | 57,18 (1300) | Flat-pack Compact | GRP | 59 (18) | 33,85 (860) | 24,40 (620) | 17,7 (450) | A |
|
|
501627 | 231,5 lb (105 kg) | 10 | 100,39 (2550) | 100,39 (2550) | 55,51 (1410) | Flat-pack Compact | GRP | 59 (18) | 33,85 (860) | 24,40 (620) | 17,7 (450) | A |
|
|
501628 | 141,1 lb (64 kg) | 6 | 78,34 (1990) | 78,34 (1990) | 47,63 (1210) | Flat-pack Compact | GRP | 59 (18) | 28,74 (730) | 18,89 (480) | 13,38 (340) | B |
|
|
501629 | 160,9 lb (73 kg) | 8 | 89,97 (2270) | 89,97 (2270) | 47,63 (1210) | Flat-pack Compact | GRP | 59 (18) | 33,85 (850) | 24,05 (610) | 13,38 (340) | B |
|
|
501630 | 174,2lb (79 kg) | 10 | 100,39 (2550) | 100,39 (2550) | 55,51 (1410) | Flat-pack Compact | GRP | 59 (18) | 73,46 (850) | 24,05 (610) | 13,77 (530) | B |
PACK A Equipment:
1. Sea anchor with rope (1 piece)
2. Life ring with rope (1 piece)
3. Floating paddles (2 pieces)
4. Immediate action (1 piece)
5. Floating knife (1 piece)
6. Bailer (1 piece)
7. Sponge (2 pieces)
8. Whistle (1 piece)
9. Repair kit (1 piece)
10. Manual pump (1 piece)
11. Seasickness bag (1 per person)
12. Torch kit (1 piece)
13. Red hand flares (6 pieces)
14. Red parachute flares (4 pieces)
15. Floating smoke signal (2 pieces)
16. Signalling mirror (1 piece)
17. Drinking water (1,5 L per person)
18. Food per person (10.000 Kcal per person)
19. Anti-seasickness pills (6 per person)
20. Thermal protective aids (2 pieces)
21. Fishing kit (1 piece)
22. Radar reflector (1 piece)
23. Radar reflector support (1 piece)
24. Sea anchor (1 piece)
25. Signalling table (1 piece)
26. Drinking water vessel (1 piece)
27. Can opener (1 piece)
28. Water -collect (1 piece)
29. First aid kit (1 piece)
30. Internal user manual
PACK B Equipment:
1. Sea anchor with rope (1 piece)
2. Life ring with rope (1 piece)
3. Floating paddles (2 pieces)
4. Immediate action (1 piece)
5. Floating knife (1 piece)
6. Bailer (1 piece)
7. Sponge (2 pieces)
8. Whistle (1 piece)
9. Manual pump (1 piece)
10. Seasickness bag (1 per person)
11. Torch kit (1 piece)
12. Red hand flares (3 pieces)
13. Red parachute flares (2 pieces)
14. Floating smoke signal (1 piece)
15. Repair kit (1 piece)
16. Signalling mirror (1 piece)
17. Anti-seasickness pills (6 per person)
18. First aid kit (1 piece)
19. Thermal protective aids (2 pieces)
20. Radar reflector (1 piece)
21. Radar reflector support (1 piece)
22. Sea anchor (1 piece)
