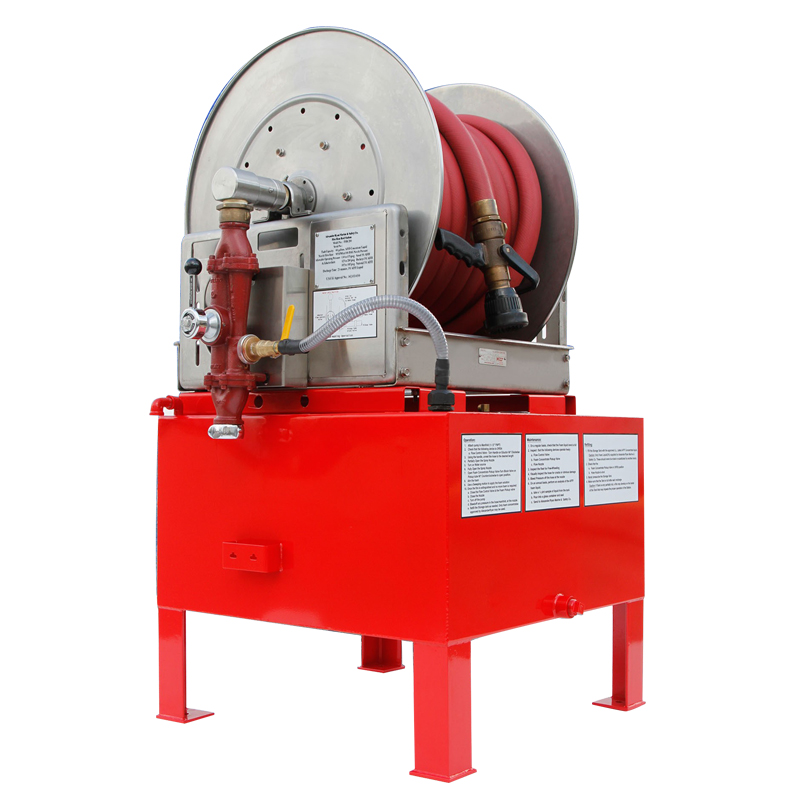

Hose Reel Unit FHR200

The LALIZAS | Alexander/Ryan Hose Reel Unit FHR200 is USCG approved, and designed for Marine, Offshore, Industrial, and Municipal applications. It mixes water with 3% AFFF foam concentrate to generate a continuous fire-fighting foam spray for approximately 21 minutes in fixed locations to control fires or spills of flammable or combustible liquids.

Features

• Nozzle:  USCG approved, combination fog and straight stream designed for more efficiency with AFFF or water. Provides a constant flow rate of 95gpm at 100psi.
• Foam Concentrate Storage tank: Manufactured of type 304 stainless steel. Tank capacity of 60 gallons, supplied with ½” drain plug and 4” fill opening on top. It can be easily refilled during operation of the unit.
• Hose Reel Assembly: Mounted on top of the tank, manufactured of type 304 stainless steel. Hand crank, with locking mechanism.
• In-line Bypass Eductor: Simple, self-contained Brass unit, with fixed setting of 3%. Female NST Inlet connection.
• Pickup tube: Includes a manual ball valve that can be closed so that the unit can be used with water only.
• Hose:  1.5” internal diameter , 100’ in length, Noncollapsible, USCG approved, UL-92.
• Foams: Suitable for use with the following three 3% AFFF foam concentrates as listed below.

                        Operating foams and pressure ranges:

• Ansul 3% AFFF: 110 to 175 psig
• Buckeye 3% AFFF: 125 to 200 psig
• National 3% AFFF: 105 to 185 psig
